Application Creation

The Pico W2 PID and VID

Each Pico device has a product ID (PID) and a vendor ID (VID) burned into the device. When your application starts, these values are used to verify that it is connecting to the correct type of board. For the Pico 2W, it is assumed that the PID = 61455 and the VID = 11914.

For the Pico 2W, it is assumed that the PID = 61455 and the VID = 11914.

If your application fails to connect to the Pico, please check the PID and VID values being returned from the device.

To do so, execute the following command:

python -m tools.list_ports

This command lists all the possible comports and device information.

For the Pico, you may see something that looks like this:

Description: Pico 2W - Pico Serial Device:/dev/ttyACM0 pid=61455 vid=11914

If the PID and VID do not match the values above, you may set them using the pid and vid parameters when instantiating the API class for the first time.

A Quick Start To Developing Applications

Examples

Examples are provided for each API and are a good source for understanding how applications are implemented using Telemetrix.

• Serial Threaded

• WiFi Threaded

• Serial Asyncio

• WiFi Asyncio

Downloading And Running The Examples

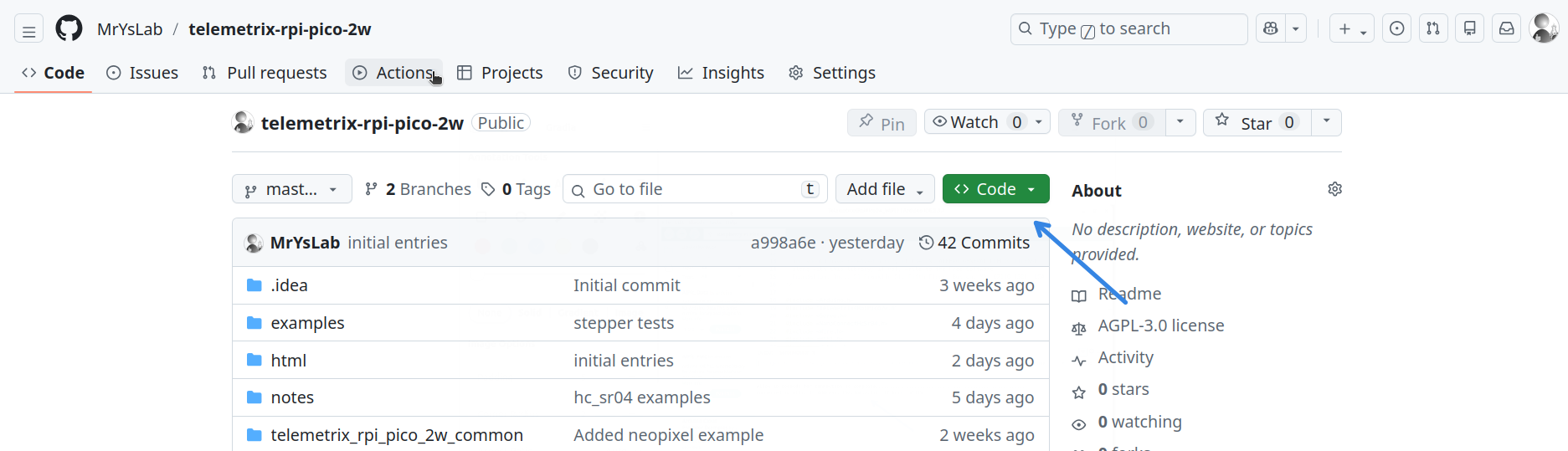

Go to the telemetrix-rpi-pico-2w GitHub repository. Click the green button in the upper-right corner and download the ZIP file.

Next, expand the ZIP file and open the examples directory. Select any of the examples that you wish to run.

Application Templates

Below are application templates to help you get started. The templates show how to instantiate each API. For asyncio, the templates

Serial Threaded

Import the API and instantiate its class.

import sys
import time

# IMPORT THE API
from telemetrix_rpi_pico_2w_serial import telemetrix_rpi_pico_2w_serial
"""

# INSTANTIATE THE API CLASS
board = telemetrix_rpi_pico_2w_serial.TelemetrixRpiPico2wSerial()

try:
    # WRITE YOUR APPLICATION HERE
except:
    board.shutdown()

WiFi Threaded

Here, we need to instantiate the class passing in the IP address assigned by your router. This parameter enables the WIFI transport.

import sys
import time

# IMPORT THE API
from telemetrix_rpi_pico_2w_wifi import telemetrix_rpi_pico_2w_wifi

# INSTANTIATE THE API CLASS
# Make sure to edit the transport address assigned by your router.

board = telemetrix_rpi_pico_2w_wifi.TelemetrixRpiPico2WiFi(ip_address='192.168.2.212')

try:
    # WRITE YOUR APPLICATION HERE
except:
    board.shutdown()

Serial Asyncio

For asyncio, in addition to importing the API, we implement the application in an asyncio function.

After obtaining an asyncio loop, we instantiate the API, passing in the loop.

We run the application by calling loop.run_until_complete(my_app(board)) and then gracefully shut it down.

import sys
import asyncio

# IMPORT THE API
from telemetrix_rpi_pico_2w_serial_aio import telemetrix_rpi_pico_2w_serial_aio

# An async method for running your application.
# We pass in the instance of the API created below .
async def my_app(the_board):
    # Your Application code

# get the event loop
loop = asyncio.new_event_loop()
asyncio.set_event_loop(loop)

try:
    board = telemetrix_rpi_pico_2w_serial_aio.TelemetrixRpiPico2WSerialAIO(loop=loop)
except KeyboardInterrupt:
    sys.exit()

try:
    # start the main function
    loop.run_until_complete(my_app(board))
except KeyboardInterrupt:
    try:
        loop.run_until_complete(board.shutdown())
    except:
        pass
    sys.exit(0)

WiFi Asyncio

For asyncio, in addition to importing the API, we implement the application in an asyncio function.

After obtaining an asyncio loop, we instantiate the API, passing in the loop we received and the IP address assigned by our router.

We run the application by calling loop.run_until_complete(my_app(board)) and then gracefully shut it down.

import sys
import asyncio

# IMPORT THE API
from telemetrix_rpi_pico_2w_wifi_aio import telemetrix_rpi_pico_2w_wifi_aio

# An async method for running your application.
# We pass in the instance of the API created below .
async def my_app(the_board):
    # Your Application code

# get the event loop
loop = asyncio.new_event_loop()
asyncio.set_event_loop(loop)

# instantiate telemetrix_aio
# Make sure to edit the transport address assigned by your router.
board = telemetrix_rpi_pico_2w_wifi_aio.TelemetrixRpiPico2WiFiAio(
    ip_address='192.168.2.212', loop=loop)

try:
    # start the main function
    loop.run_until_complete(my_app(board))
except KeyboardInterrupt:
    try:
        loop.run_until_complete(board.shutdown())
    except:
        pass
    sys.exit(0)
