General Principles

Pin Modes

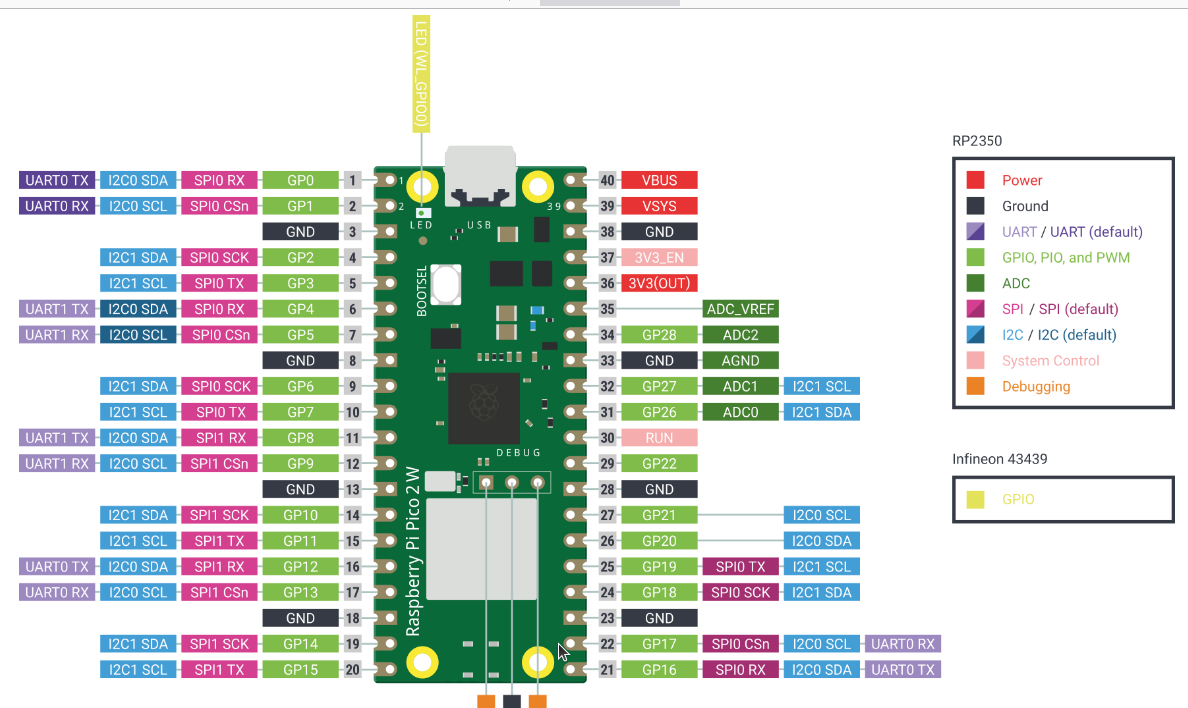

If you look at the Pico pin-out diagram, you will see that a GPIO pin may be configured to operate in one of several operational modes.

No matter the mode, when using Telemetrix, you must first explicitly set the mode by calling one of the set_pin_mode_XXX methods for the pin. For output modes, if you try to perform a write operation and have not first set the pin's mode, a RunTimeError exception is thrown.

Valid GPIO Pin Numbers

GPIO Pins 0 through 22, and 26 through 28 are valid pins to use. The board LED is GPIO pin 64.

ADC Pins

ADC pins are specified by their corresponding ADC number, not their GPIO pin number.

ADC numbers are mapped as follows:

           ADC0 = GPIO 26 (Physical Pin 31)
           ADC1 = GPIO 27 (Physical Pin 32)
           ADC2 = GPIO 28 (Physical Pin 34)

           Internal Mapping
           ADC3 = GPIO 29 (Physical Pin 35) ADC Reference Voltage
           ADC4 = GPIO 30 (No Physical pin - mapped internally)
                          CPU temperature\

I2C Pins

Telemetrix supports two i2c ports, 0 and 1. SDA and SCL are mapped to GPIO pins as follows:

SDA Pins

  • Port 0 = 4
  • Port 1 = 26

SCL Pins

  • Port 0 = 5
  • Port 1 = 27

SPI Pins

Telemetrix supports two SPI ports, 0 and 1. Pins are mapped as follows:

  • Chip Select(CS) may be any valid GPIO pin number.

  • MISO: SPI data receive pin

    • spi0 = 16
    • spi1 = 12

  • MOSI: SPI data transmit pin

    • spi0 = 19
    • spi1 = 15

  • Clock Pin (CLK):

    • spi0 = 18
    • spi1 = 14

Device Number Limits

  • Stepper motors: 4
  • DHT Temperature/Humidity Sensors: 2
  • HC-SR04 Sonar Distance Sensors: 4

Callbacks

When you set a pin to an input mode, you must register a callback function to notify the application of any changes to the pin's data.

Telemetrix does not support polling or direct read methods for inputs. Instead, as soon as a data change is detected, the pin's associated callback is called, allowing for immediate response to data changes and, in general, simpler application design.

When you create a callback function, you must specify a single input parameter. The client automatically populates this parameter with a list describing the data change.

The callback data list's contents vary by input pin type and are described in detail for each set_pin_mode_XXX method in the API documentation.

Callback Data Format

The first element in the list identifies the report type, and the last element is the timestamp of the data change. Other elements identify the GPIO pin, the current data value, and any other relevant information.

Report Types

Report Type Report Type Value
Digital Input (including pullup and pulldown) 2
Analog Input (ADC) 3
i2c Read 10
SONAR Distance 11
DHT 12
SPI Read 13
STEPPER_DISTANCE_TO_GO 15
STEPPER_TARGET_POSITION 16
STEPPER_CURRENT_POSITION 17
STEPPER_RUNNING_REPORT 18
STEPPER_RUN_COMPLETE_REPORT 19
CPU_TEMP_REPORT 20
UNIQUE_ID_REPORT 62

Converting The Raw Timestamp

To convert the raw timestamp field to a human-readable time, use time.localtime().

Registering A Callback

The line below establishes GPIO pin 12 as a digital input pin with pullups enabled and associates a user-provided function, named the_callback, to be called whenever the state of pin 12 changes.

board.set_pin_mode_digital_input_pullup(12, the_callback)

A Callback Function Example

Here is the implementation for the callback function that services pin 12. It prints out a notification of the change to the console. Your callback function may store the latest value or issue a command, such as to control an LED or another device.

NOTE: Keep the callback function as short as possible. If you need to perform extended processing, create a separate thread or task so your application can continue without blocking.


def the_callback(data):
    """
    A callback function to report data changes.
    This will print the pin number, its reported value and
    the date and time when the change occurred

    :param data: [pin mode, pin, current reported value, pin_mode, timestamp]
    """
    date = time.strftime('%Y-%m-%d %H:%M:%S', time.localtime(data[CB_TIME]))
    print(f'Report Type: {data[CB_PIN_MODE]} Pin: {data[CB_PIN]} '
          f'Value: {data[CB_VALUE]} Time Stamp: {date}')

And here is the output printed by the callback function:

Report Type: 2 Pin: 12 Value: 1 Time Stamp: 2021-03-15 16:41:08
